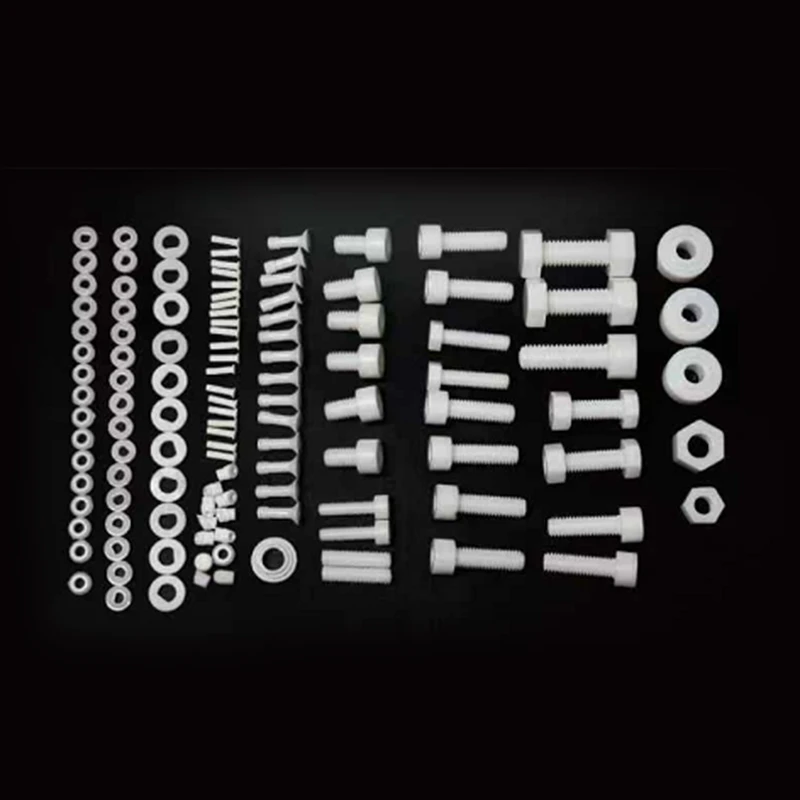

Our Wear resistant PV Ceramic Components are manufactured using zirconia as the primary raw material. The material structure is dense and uniform, providing excellent hardness and outstanding wear resistance with low friction loss during operation. The components are not prone to surface wear, chipping, or particle shedding.
In addition, they offer excellent thermal resistance, environmental corrosion resistance, dimensional stability, and strong anti-deformation performance. These properties make them suitable for long-term continuous operation and high-frequency friction conditions in photovoltaic equipment systems.
The Wear resistant PV Ceramic Components are widely used in photovoltaic systems requiring stable performance, long service life, and reduced maintenance frequency.
Application Fields
Widely used in:
- Photovoltaic production line transmission components
- PV assembly wear-resistant accessories
- New energy equipment supporting structures
- Photovoltaic automation line wear-resistant parts
The products are suitable for a wide range of photovoltaic industrial systems requiring durable mechanical performance and stable operation.
Company Advantages
Our company specializes in zirconia-based photovoltaic ceramic component manufacturing. With mature forming, sintering, and precision machining technologies, we operate a fully integrated production system with in-house equipment and strict quality control throughout the entire process.
We support:
- Non-standard photovoltaic wear-resistant component customization
- Drawing-based and sample-based manufacturing
- OEM/ODM production services
- Small-batch prototyping and mass production
The factory provides flexible and reliable customization solutions for different photovoltaic equipment models and application requirements.
Product Parameters & Customization Details
|
Item |
Parameters & Customization Details |
|
Material Specification |
Standard 3Y yttria-stabilized zirconia; other wear-resistant ceramic materials available; customer-supplied materials supported |
|
Dimensions |
Standard machining range 1mm–300mm; irregular and non-standard installation structures can be customized according to drawings |
|
Performance Index |
Hardness 1200–1400HV; standard temperature resistance ≤1300°C; acid and alkali aging resistance; performance tuning available based on working conditions |
|
Machining Accuracy |
Standard tolerance ±0.01mm; high-precision customization up to ±0.002mm available |
|
Product Types |
Standard photovoltaic wear-resistant components available; supports non-standard customization and small-batch production |
