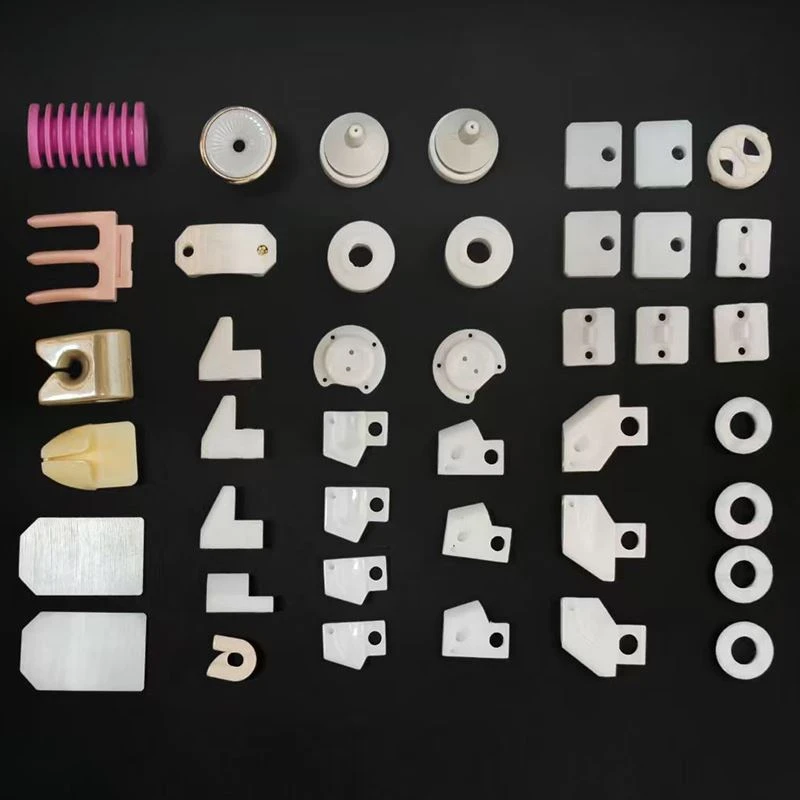

Zirconia Ceramic Parts are compact precision components made from 3Y zirconia for mechanical and insulating duties. They are used in robot-joint accessories, textile yarn-guide assemblies, photovoltaic equipment and automation positioning or connection systems where small ceramic features are built into the machine structure.

Core Advantages

Micron-Level Precision Option

Standard tolerance is ±0.01 mm, and ultra-precision machining can reach ±0.001 mm. The tighter option is intended for compact positioning, rotating and guided assemblies where small dimensional changes directly affect clearance or alignment.

Wear Stability Under Repeated Friction

Dense zirconia offers very high wear resistance. Yarn-guiding, sliding and high-frequency reciprocating surfaces are less prone to rapid groove formation or edge loss, so their working geometry holds for longer under repeated friction.

Resistance to Chemical and Oxidizing Exposure

The material resists acids, alkalis and oxidation. In humid process areas, chemical-handling zones or equipment cleaned with chemical media, the ceramic surface does not produce the rust or oxidation products that can contaminate a precision interface.

Customization

Zirconia Grade

3Y zirconia is used for standard parts. Wear-enhanced or toughness-enhanced zirconia can be selected when a project needs a different balance of material properties.

Part Structure

The product range includes miniature parts as well as thin-wall, irregular and more complex structures. Drawings can define stepped bodies, curved profiles, integrated features and other non-standard sections.

Feature Configuration

Holes, slots, grooves, shoulders, chamfers and local mating surfaces can be made to the drawing. Customer-supplied ceramic material can also be processed for non-standard projects.

Product Parameters & Customization Details

Item	Parameters & Customization Details
Custom Material	Standard 3Y zirconia ceramic; wear-resistant and toughness-enhanced ceramic materials available upon request
Structural Design	Mature mass production for standard miniature parts; complex shapes, thin-wall, and irregular structures can be customized according to drawings
Precision Grade	Standard tolerance ±0.01mm; ultra-precision machining up to ±0.001mm available
Performance Features	Insulation, oxidation resistance, acid & alkali resistance, and wear resistance; performance enhancement customization available according to working conditions
Production Mode	Large-scale mass production, small-batch prototyping, and non-standard custom processing with customer-supplied materials supported

Quality Control

Miniature, thin-wall and irregular parts are checked after forming and sintering for distortion, cracks, chips and edge damage. Damaged or deformed blanks are removed before they reach precision machining.

After finishing, inspection focuses on small holes, slots, grooves, shoulders and mating features that affect fit or movement. Contact or optical measurement is chosen according to access and geometry, with exposed edges checked separately for chipping.

Before packing, each finished part is checked for the required dimensions, appearance, quantity and cleanliness. Packaging is then selected to protect thin walls, finished edges and precision contact surfaces from part-to-part damage during transit.
