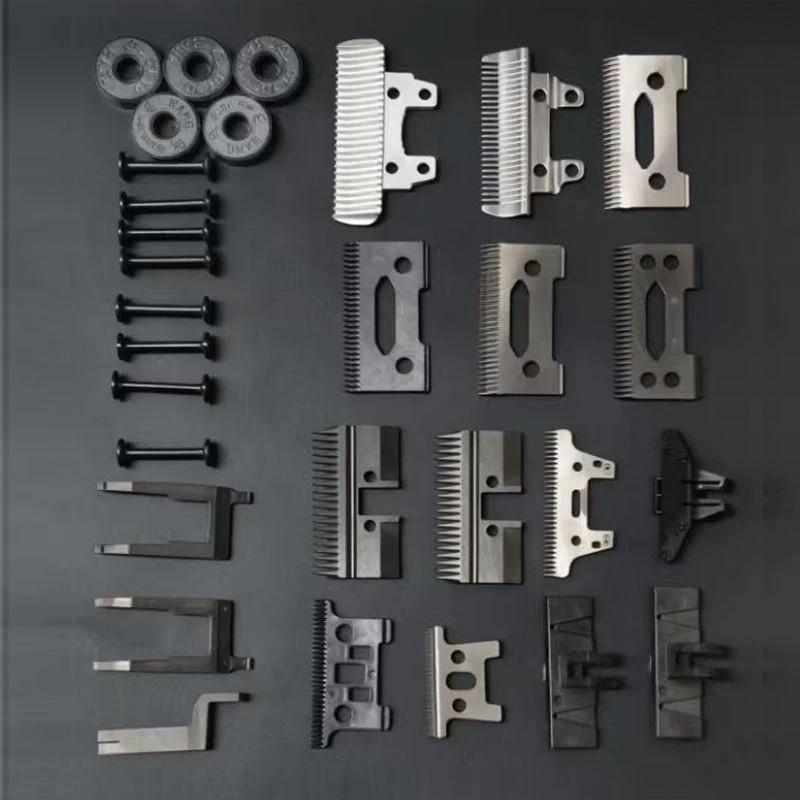

Wear resistant ceramic blades are precision zirconia cutters intended for equipment where repeated cycles can change edge condition and dimensions. They are used in precision textile machinery, compact hairdressing devices, automated cutting systems, and instrument or measuring equipment with a fine cutting element.

Application Fields

Wear-Resistant 3Y Zirconia Edge

Standard 3Y zirconia gives the blade a hard ceramic cutting surface for repeated trimming and micro-shearing. When abrasive contact returns to the same edge zone cycle after cycle, wear develops more slowly and the cutting profile is retained for more operating cycles.

Low-Friction Contact During Repetitive Cutting

The working surface is precision finished to lower sliding resistance against flexible or fibrous media. During continuous cutting, reduced drag limits heat and material pickup close to the edge, so less residue interferes with the cut path.

Rust-Free Surface in Humid Process Areas

Workshop humidity and routine cleaning moisture do not cause red rust on zirconia. Even where the cutting area is not fully dry, the ceramic edge remains free of the corrosion scale that can roughen a metal cutting surface.

Customization

Profile Range

Standard precision blade forms, micro-sized parts, ultra-thin sections, and complex irregular profiles produced to drawing.

Interface Features

Locating holes, slots, reliefs, and mounting details matched to the equipment interface.

Edge Finishing

Precision grinding and polishing of straight, curved, or application-specific cutting contours.

Quality Control

Micro-sized, ultra-thin, and irregular blade bodies are inspected after sintering for distortion, edge loss, cracks, and chipped corners before precision finishing. Thin sections are checked carefully because even a small shape change can affect seating in the machine.

The finished cutting line is viewed under magnification for micro-chipping, notches, and discontinuity. Thin sections and small locating features are measured separately, so an acceptable dimensional reading does not override a damaged edge.

Packing release follows a 100% check of the specified dimensions and appearance. Accepted blades are cleaned and kept apart during packing, and the inspection result is retained with the production lot.

Product Parameters & Customization Details

Item	Parameters & Customization Details
Material Specification	Standard 3Y zirconia ceramic; high-precision-grade special ceramic materials available upon request
Structural Design	Mature production for standard precision blades; micro-sized, ultra-thin, and complex irregular shapes can be customized according to drawings
Precision Grade	Standard tolerance ±0.01mm; high-end precision components up to ±0.002mm available
Performance Features	High precision, wear resistance, thermal stability, and corrosion resistance; customization available based on precision cutting conditions
Production Mode	Mass production of standard blades; supports small-batch prototyping and non-standard precision ceramic blade customization
