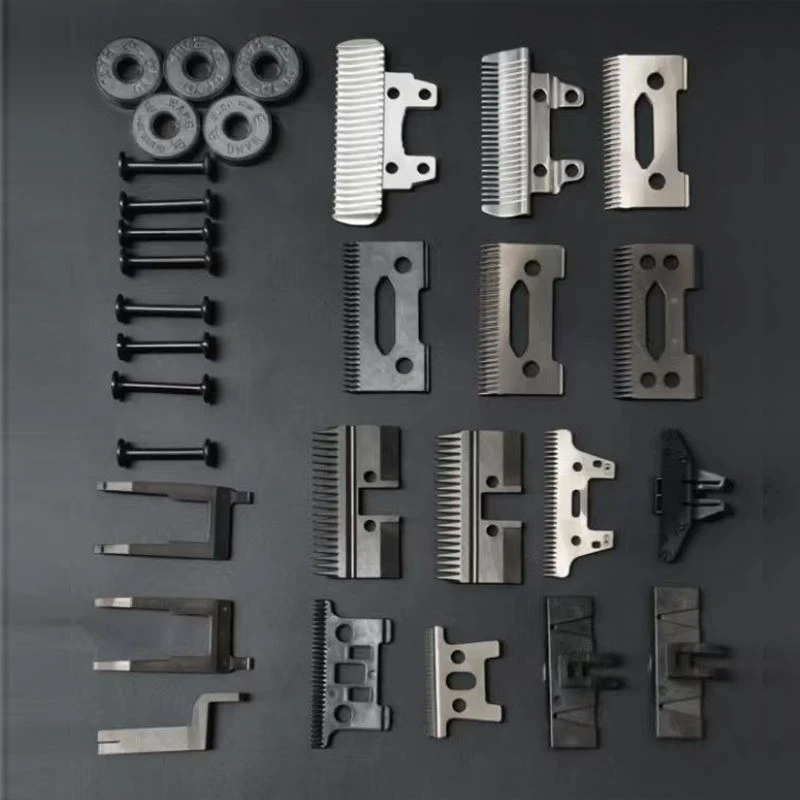

Zirconia ceramic blades are non-metallic precision cutters used in machine-mounted and hand-held assemblies. Typical uses include textile cutting and shearing, hairdressing and pet-grooming tools, industrial thin-film cutting, and photovoltaic film cutting systems.

Application Fields

1100-1300 MPa Flexural Strength

The standard 3Y zirconia grade is listed at 1100-1300 MPa flexural strength. For thin blade sections that see repeated bending close to the cutting line, this strength gives the ceramic more resistance to crack initiation and edge loss under normal machine loading.

Wear-Resistant 3Y Zirconia Cutting Line

3Y zirconia has a hard cutting surface suited to repeated contact with textile fibers, film, and other non-metallic media. Abrasive wear develops more slowly during long cutting runs, allowing the edge to hold its working condition for more cycles.

Corrosion-Free in Humid and Mild Chemical Conditions

The material is specified for humid conditions and mild acid-alkali exposure, and it does not rust. Wash moisture or mild chemical residue therefore does not create rust scale or corrosion pitting on the working surface.

Customization

Geometry

Standard blade sizes, irregular profiles, and application-specific cutting contours produced from drawings.

Hole Structures

Standard mounting holes, special hole patterns, slots, and locating features produced to the target holder interface.

Post-Sinter Machining

Surface grinding, edge polishing, drilling, slotting, and full non-standard contour machining.

Quality Control

After sintering, blade bodies are screened for warpage, cracks, chipped edges, and local deformation before final grinding. A blank with unacceptable distortion is removed at this stage rather than carried into precision finishing.

The cutting line and holder interface are inspected as separate areas. Edge continuity, flatness, and thickness are checked independently from hole, slot, and locating-feature positions, using optical or contact measurement according to feature size.

Each finished blade is inspected before shipment against the approved dimensional and appearance requirements. Results are kept with the production batch. Independent third-party inspection can also be included when the order calls for it.

Product Parameters & Customization Details

Item	Parameters & Customization Details
Material Specification	High-purity 3Y zirconia as standard; wear-resistant and toughened ceramic formulations available upon request
Dimensions	Full range of standard blade sizes available; irregular shapes and special hole structures can be customized according to drawings
Mechanical Properties	Flexural strength 1100–1300 MPa; moderate toughness to prevent edge chipping
Temperature & Corrosion Resistance	Standard temperature resistance up to 1300°C; resistant to humidity and mild acid-alkali environments
Processing Services	Precision surface grinding, edge polishing, drilling, slotting, and full non-standard machining customization
