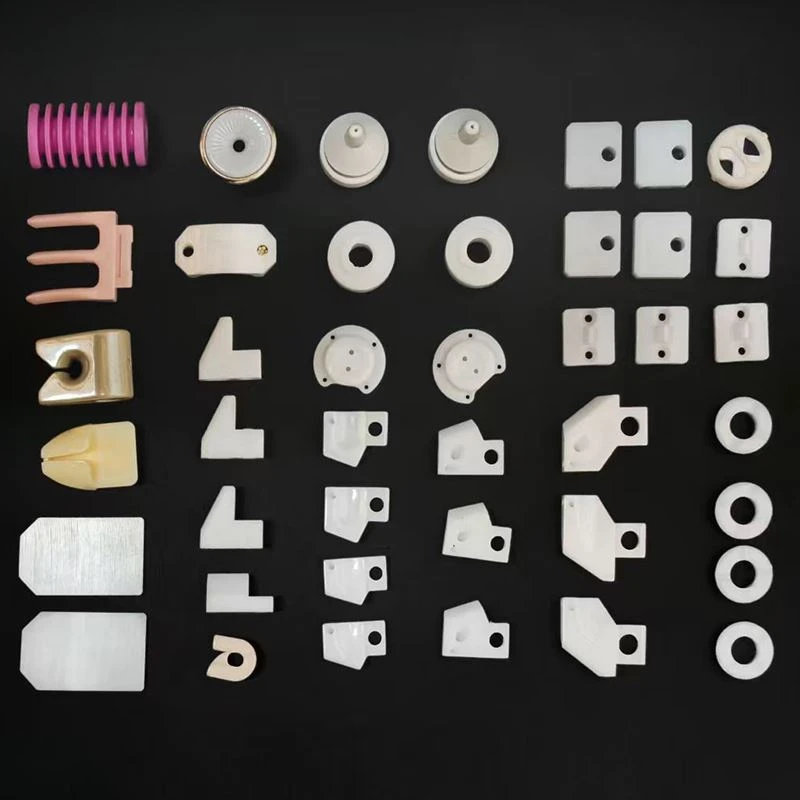

Precision Ceramic Components are drawing-based technical ceramic parts, normally made from 3Y yttria-stabilized zirconia. They are used for positioning, transmission support and insulation in photovoltaic equipment, automation systems, textile machinery, robotics and precision instruments where finished ceramic features must fit a controlled mechanical assembly.
Core Advantages
Tight Dimensional Control
Standard tolerance is ±0.01 mm, with ultra-precision machining available to ±0.001 mm. Locating bores, mating faces and small positioning features can be finished to the assembly datum when accumulated error would otherwise shift the mechanism.
1200–1500 HV Hardness
Hardness is 1200–1500 HV. On guides, supports and moving interfaces, the hard surface resists local indentation and wear, helping controlled dimensions remain closer to their finished values through repeated contact.
Up to 1400°C with Acid/Alkali Resistance
The standard range covers temperatures up to 1400°C together with acid and alkali resistance. This allows precision parts to work near heated process zones or chemical media where metal oxidation, corrosion or transferred contamination could affect the assembly.
Customization
- Material Range
3Y yttria-stabilized zirconia is standard. Other advanced ceramics or customer-supplied ceramic materials can be considered when the project has different mechanical, electrical or thermal requirements.
- Dimensions and Geometry
The standard size range is 1–300 mm. Irregular profiles, integrated structures and other complex drawing-defined shapes can be produced within the selected forming and machining route.
- Assembly Features
Bores, slots, steps, shoulders, mating faces and finished contact surfaces can be included in the part design. Grinding, drilling, slotting, chamfering and polishing are assigned according to the geometry on the drawing.
Product Parameters & Customization Details
|
Item |
Parameters & Customization Details |
|
Material Specification |
Standard 3Y yttria-stabilized zirconia; supports other advanced ceramics and customer-supplied material processing |
|
Dimensions |
Standard sizes from 1mm–300mm; irregular and complex precision structures can be customized according to drawings |
|
Performance Index |
Hardness: 1200–1500HV; temperature resistance ≤1400°C; acid and alkali corrosion resistance; performance adjustment available based on application conditions |
|
Machining Accuracy |
Standard tolerance ±0.01mm; ultra-precision tolerance up to ±0.001mm available |
|
Product Types |
Standard precision structural parts available; supports non-standard customization, small-batch R&D prototyping, and custom manufacturing |
Quality Control
The approved drawing, specification or confirmed sample remains the inspection reference through forming, sintering and final machining. Parts showing deformation, cracks or edge damage after sintering are removed before precision features are finished.
Assembly datums receive the closest dimensional attention, including locating bores, steps, shoulders, mating faces and spacing features. Contact or optical methods are selected feature by feature according to geometry and tolerance.
A 100% final check covers specified dimensions, appearance, accepted quantity and cleanliness before packing. Inspection records stay with the production batch so the released requirement can be reviewed against the measured result.
FAQ
Q: Can a sample be provided before mass production?
A: Yes. A prototype or sample can be provided before mass production.
Q: What is the production lead time for standard products?
A: Generally 48 days after the order sample is confirmed.
Q: Are standard 3Y zirconia Precision Ceramic Components magnetic?
A: No.
Q: What core forming technology is listed for this product line?

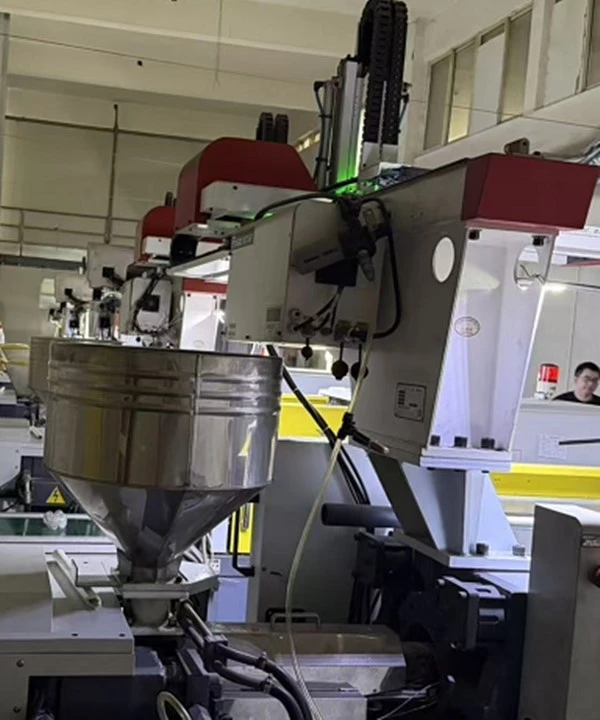

A: Ceramic Injection Molding (CIM).
