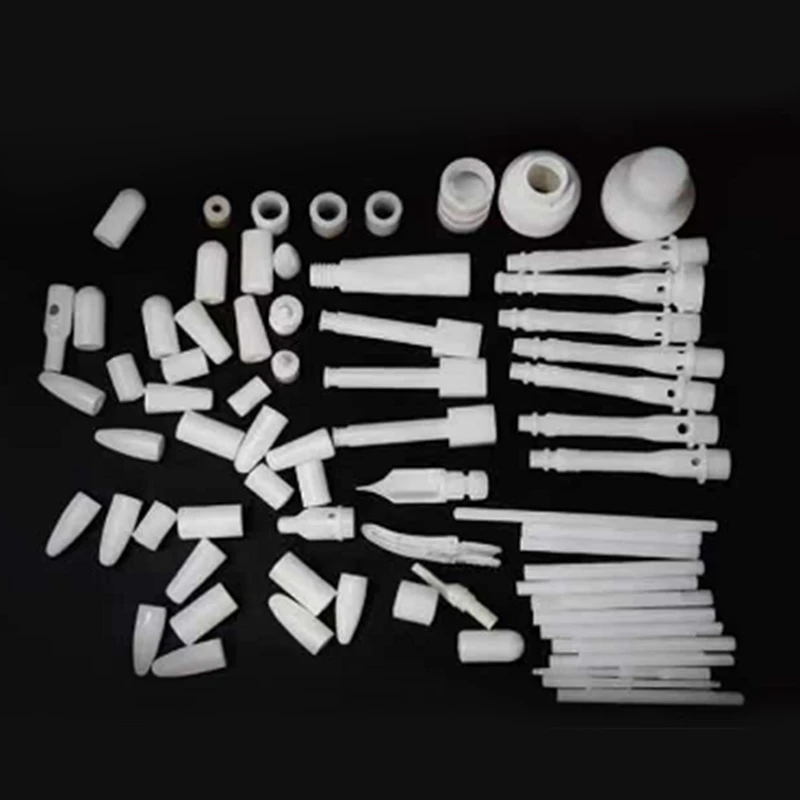

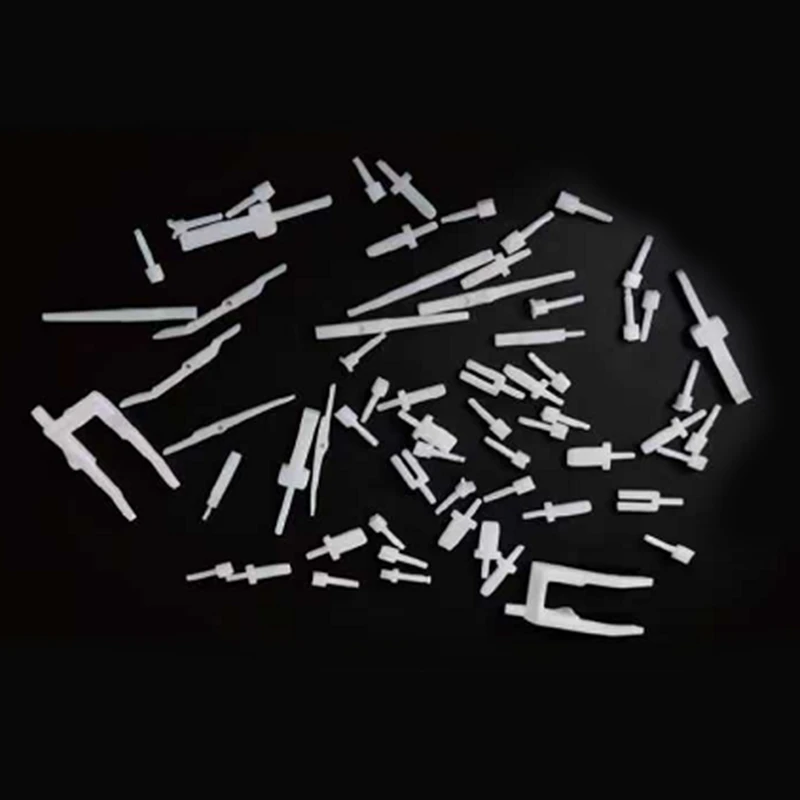

Textile ceramic yarn guides are zirconia routing parts for continuous high-speed yarn handling. They are used in spinning machines, texturing machines, circular and warp knitting machines, weaving equipment, and webbing lines where yarn runs across a defined guide surface.
Core Advantages
Mirror-Polished Yarn Contact Surface
After precision machining, the zirconia yarn-contact surface is mirror polished. This smooth finish reduces friction and snag points during high-speed filament routing, limiting fuzzing and other yarn damage caused by continuous sliding contact.
1100-1300 MPa Strength at Curved Guide Sections
The zirconia body is listed at 1100-1300 MPa flexural strength. Curved guides and small-radius eyelets concentrate yarn tension and machine vibration in narrow sections, where the stronger body offers more resistance to cracking.
Resistance to Humidity and Mild Process Chemicals
Zirconia stays rust-free in humid textile areas and is suited to mild acid-alkali exposure. Wet-process residue or moisture does not create oxide scale or corrosion roughness on the yarn-contact surface.
Customization
- Guide Geometry
Standard yarn-guide sizes, irregular apertures, and curved structures produced to drawing.
- Installation Dimensions
Mounting faces, outer profiles, locating dimensions, and holder interfaces matched to the target machine.
- Processing
Inner-hole precision grinding, mirror polishing, and outer contour cutting for non-standard guide forms.
Quality Control
After polishing, the yarn-contact path is examined under magnification for scratches, pits, chips, and abrupt edge transitions. The bore or groove is expected to remain continuous, without a defect that could catch a running filament.
Mounting dimensions and yarn-contact geometry are checked separately. Outer locating features are measured for assembly fit, while the bore, groove, and contact radius are examined optically when surface condition matters more than a single external dimension.
All finished guides receive 100% inspection before packing and are cleaned of visible finishing or handling residue.
Product Parameters & Customization Details
|
Item |
Parameters & Customization Details |
|
Material Specification |
High-purity 3Y zirconia as standard; ultra-smooth wear-resistant ceramic formulations available |
|
Dimensions |
Standard yarn guide sizes available; irregular apertures and curved structures can be customized |
|
Mechanical Properties |
Flexural strength 1100–1300MPa; stable structure with strong fracture resistance |
|
Temperature & Corrosion Resistance |
Standard temperature resistance up to 1300°C; resistant to textile workshop humidity and mild acid-alkali environments |
|
Processing Services |
Inner hole precision grinding, mirror polishing, and outer contour cutting; supports full non-standard customization |
FAQ
Q: What are the payment terms for textile ceramic yarn guides?
A: Standard orders use a 30% deposit and 70% balance after acceptance before shipment; custom orders use 50% deposit and 50% balance.
Q: Can I order samples before mass production?
A: Yes. Prototype sampling is available; free samples are not provided before an order is placed.
Q: What operating information is useful when selecting a yarn guide?
A: Provide yarn type or denier, line speed, tension, wrap angle, and machine position.
Q: What should be checked if filament breakage rises?
A: Check contamination, guide alignment, yarn tension, and damage along the yarn-contact path.
