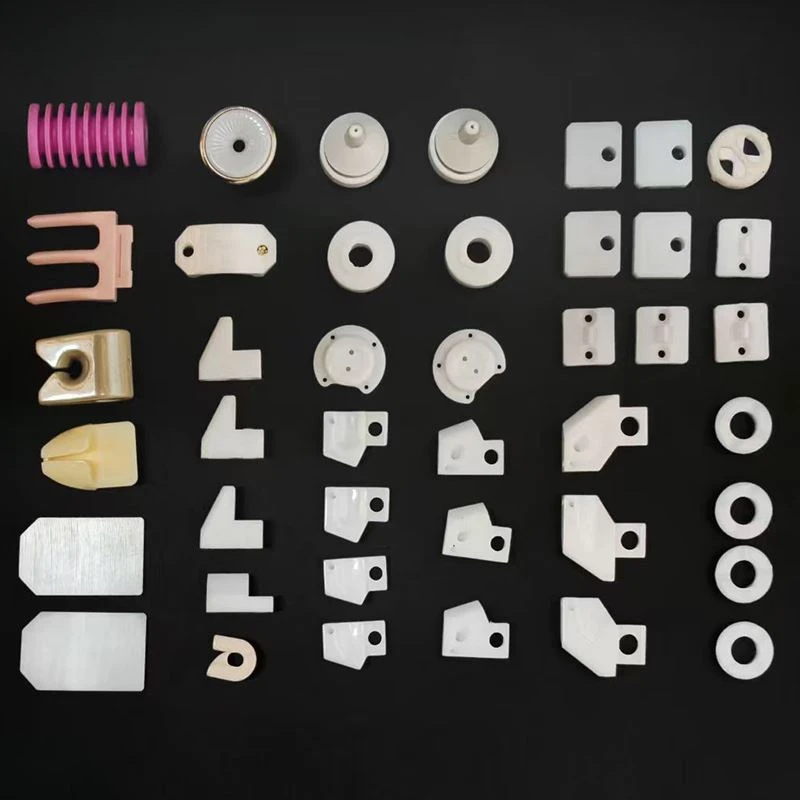

Industrial Ceramic Parts are 3Y zirconia components used for structural, transmission, protective and wear-related duties in machinery. They appear in general industrial equipment, automated lines, transmission systems, precision supports and non-standard machines where ceramic parts replace or work alongside metal at defined interfaces.
Core Advantages
1200–1500 HV Hardness
Hardness is 1200–1500 HV. At transmission contacts, guide surfaces and wear-prone supports, the ceramic resists indentation and surface loss, so repeated machine cycles change the working geometry more gradually.
Thermal and Chemical Capability to 1400°C
Standard parts are rated for temperatures up to 1400°C and resist acids and alkalis. In areas exposed to heat, process chemicals or cleaning media, the ceramic avoids rust and coating breakdown that could alter a metal interface.
Precision from ±0.01 mm to ±0.001 mm
Machining tolerance is ±0.01 mm as standard and can reach ±0.001 mm for ultra-precision work. Critical locating, bearing and mating dimensions can be assigned the precision level needed to control clearance, motion or alignment.
Customization
- Material Range
3Y yttria-stabilized zirconia is standard. Other industrial ceramic grades or customer-supplied ceramic materials can be processed when a different thermal, wear or electrical system is required.
- Size and Structural Range
The standard dimension range is 1–300 mm. Complex, irregular and integrated structures can be made from drawings for non-standard industrial equipment.
- Feature Machining
After sintering, grinding, drilling, slotting, chamfering, edge finishing and polishing are available. The required scope is defined by the bores, shoulders, mating faces, contact surfaces and mounting features on the drawing.
Product Parameters & Customization Details
|
Item |
Parameters & Customization Details |
|
Material Specification |
Standard 3Y yttria-stabilized zirconia; other industrial ceramic materials and customer-supplied processing supported |
|
Dimensions |
Standard range 1mm–300mm; complex industrial irregular and integrated structures can be customized according to drawings |
|
Performance Index |
Hardness 1200–1500HV; temperature resistance ≤1400°C; acid and alkali corrosion resistance; performance tuning available based on equipment conditions |
|
Machining Accuracy |
Standard tolerance ±0.01mm; ultra-precision tolerance up to ±0.001mm available |
|
Product Types |
Complete range of standard industrial components; supports non-standard customization and small-batch prototype production |
Quality Control

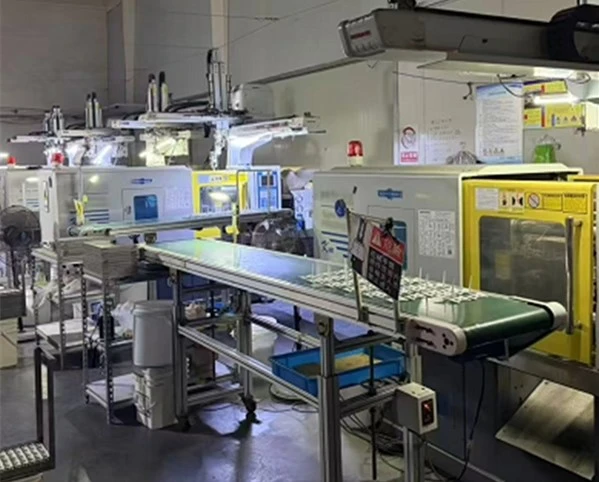

Checks follow the part through forming, sintering and final machining. The sintered body is inspected for cracks, distortion and edge damage before precision work begins.
After machining, bores, slots, shoulders, mating faces, alignment dimensions and exposed working surfaces are checked as machine interfaces. Contact or optical measurement is selected according to the feature geometry and tolerance on the released drawing.
A 100% final inspection covers appearance, specified dimensions, accepted quantity and cleanliness before packing. The inspection record stays linked to the production batch and shipment for repeat-order or issue review.
FAQ
Q: How are Industrial Ceramic Parts packed for export?
A: Packaging is selected according to part shape and the agreed protection requirement.
Q: What is the lead time for standard Industrial Ceramic Parts?
A: Generally 48 days after the order sample is confirmed.
Q: Are standard 3Y zirconia Industrial Ceramic Parts magnetic?
A: No.
Q: Can Industrial Ceramic Parts be produced from a customer sample?
A: Yes.
